Traction bars

Due to the high shipping charges and different setup on my truck due to yearly automobile inspection over here in Belgium I built my own instead of buying Keith's set.

I used to run a homebuilt version of the caltracs but due the system design and some mistakes on my part while building I was left with slack in the suspension and it rattled which was very annoying.



I reused the rear caltrac setup, it's based of the bottom U bolt plate instead of a seperate welded clamp like keith uses. This way I can easily remove the entire thing and swap in a different plate for the yearly inspection.



Because of the fact that I used the u bolt plate, the bars were not in line with the frame and I had to use a offset bracket. I opted to use bolts instead of welding it to the frame again for the yearly inspection, hopefully they won't notice the holes in the frame.

Marking




Point of no return



Sleeve tube in to prevent the frame from buckling when tightening the bolts



Welded



Ready for paint

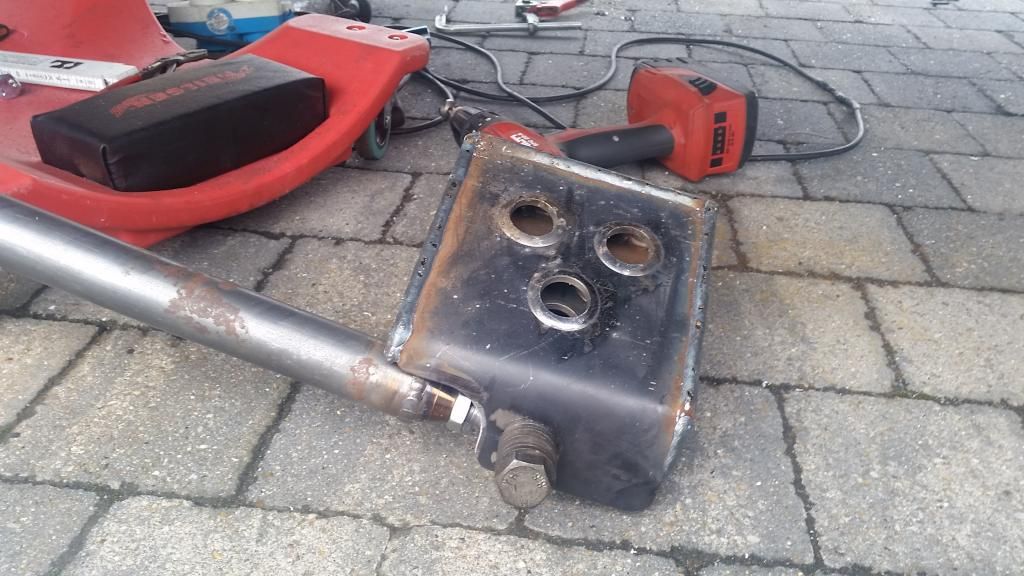

Side mount bracket, recently bought a set of dimple dies and really wanted to use them lol , did put them in wrong, the bulge should be down lol. Did al the bending of the plate with my 20 ton press, worked perfectly.




Bracket in place, the bars are nice n close to the frame, but hopefully not too close so that they touch when the suspension bottoms out, time will tell.



Thanks for watching

__________________
Christof Matthys - 2003 2x4 QC Ram hemi - 0-60: 5,4 sec @ 6900 pounds - tuned by Charged392 - 392 stroker - vararam - Flexalite Efan - 170 T stat - Taylor shorty wires - pacesetter headers - true duals - evap delete - airco delete - truetrac lsd rear diff, 3.92 gears, T56 6 speed manual - homebuilt rear axle flip - Charged 392 design longbars - energy suspension poly bushings - michelin contisportcontact 275/30 R20 - 2/4,5 drop - hydroboost swap - srt front 4 piston caliper swap - PLX Devices AFR, fuel pressure, OBDII logger

Belgiquebasterd is offline   Reply With Quote
Sponsored Links
Advertisement

Old 10-12-2014, 11:05 AM   #2
Greg

Redtruck-VA's Avatar

Join Date: Jan 2011
Location: Virginia
Posts: 18,824
Garage
Nicely done..
__________________
2003 RCSB, 2wd, "Pro-Street"
6.4L/cog driven V7-Ysi/46rh trans/HTH Truckarm coilover suspension. HP Tuning...

1# 2017 HTC FASTEST HEMI List....
Current 1/4 mile [email protected] (2018)
Current 60' PB 1.351 (2019) mechanical issue for 1/4m

HTC 2018 TOTY

Support vehicle- 2007 QC G56 4x4 diesel
Redtruck-VA is offline   Reply With Quote
Old 10-12-2014, 11:54 AM   #3
2012 Truck of the Year
Engine Specialist

charged392's Avatar

Join Date: May 2011
Location: Fort pierce, FL
Posts: 17,168
Garage
Nicely done.
__________________
"CMR TUNER" [email protected] 1/4 with a 7.32 1/8 custom long/short bars by "Me" Turbocharged 392 on 9psi S475/96/1.32 . Running thru an A518! [email protected]
charged392 is offline   Reply With Quote
Sponsored Links
Advertisement

Old 10-12-2014, 01:37 PM   #4
Stu

Join Date: Oct 2009
Location: FL
Posts: 20,206
Garage
Ghost03hemi is offline   Reply With Quote
Old 10-12-2014, 02:25 PM   #5
John

SUPER BEE's Avatar

Join Date: Feb 2014
Location: Meridian, MS
Posts: 3,598
Garage
Cool

Good job.
__________________

SUPER BEE is offline   Reply With Quote
Old 10-12-2014, 09:53 PM   #6
Stu

Join Date: Oct 2009
Location: FL
Posts: 20,206
Garage
How long did you make the bars? Really like the forward brackets.
Ghost03hemi is offline   Reply With Quote
Old 10-12-2014, 10:55 PM   #7
Truck of the year 2014

Belgiquebasterd's Avatar

Join Date: Feb 2013
Location: Belgium
Posts: 640
Garage
Quote:
Originally Posted by Ghost03hemi View Post
How long did you make the bars? Really like the forward brackets.
65"/165cm, no real reason for that specific length except it was the easiest furthest forward location for the forward bracket. Further forward I would've had to pass the body mount on the frame and therefore lowering the whole setup, which I didn't want to do.
__________________
Christof Matthys - 2003 2x4 QC Ram hemi - 0-60: 5,4 sec @ 6900 pounds - tuned by Charged392 - 392 stroker - vararam - Flexalite Efan - 170 T stat - Taylor shorty wires - pacesetter headers - true duals - evap delete - airco delete - truetrac lsd rear diff, 3.92 gears, T56 6 speed manual - homebuilt rear axle flip - Charged 392 design longbars - energy suspension poly bushings - michelin contisportcontact 275/30 R20 - 2/4,5 drop - hydroboost swap - srt front 4 piston caliper swap - PLX Devices AFR, fuel pressure, OBDII logger

Belgiquebasterd is offline   Reply With Quote
Old 10-13-2014, 05:31 AM   #8
Senior Member

Gila Hemi's Avatar

Join Date: Mar 2006
Location: Sonora Desert
Posts: 10,362
Garage
Do you have the equivalent of TÜV there? If so, they'll notice it...
Gila Hemi is offline   Reply With Quote
Old 10-13-2014, 05:29 PM   #9
Board of Directors-Bill

arocketman's Avatar

Join Date: Aug 2007
Location: Space Coast, FL/Eastern Shore, Va
Posts: 12,469
Garage
Nice work!
__________________
‘05 QC
BLUE MAX
"Slightly Tweaked"
Just [email protected]




arocketman is offline   Reply With Quote
Old 10-13-2014, 07:00 PM   #10
Board of Directors "Phil"

GodsRodsHEMI's Avatar

Join Date: Oct 2004
Location: Orlando
Posts: 4,775
Garage
nice work
__________________
silver 04 SLT QC 4x2/HEMI/ 20"chrome wheels/A.R.E. LSII Tonneau/HEMI logoed bedliner/
tow/haul button/full power Leather seats/ HEMI embroidered headrests/Billet style "HEMI" door inserts and door pillar inserts/black DEE ZEE Nerf bars/ custom graphic stripes by westside vinyl & graphics/Tinted windows/billet(brushed)fuel door(locking)/HEMI with rams head embroidered floor mats/H.T.C. Trible window Logo's/Husky Liners Mudflaps/Sonar gen 3 taillights/Super chip programer
Shaved Tailgate handle w/Sir Michaels handle relocator.
True Duals w/Flow master 50 series (Delta Flows) and IMCO performance exhaust X pipe and LXP stainless tips.Mopar rear wheel well liners.
Billet "BIG MOUTH GRILLE" by Precision grilles,T-REX Billet bumper insert.,HAMBEK SIXPACK HOOD W/RamAIRBOX
Future mods: ??
view my website at http://philbonc.50megs.com/photo6.html
more pics from HEMI in the hills taken by KenandJenn 2005


2011 SRT8 Challenger 392 HEMI Inaugural edition #0925 of 1100 made for USA

GodsRodsHEMI is offline   Reply With Quote
